Screened/Braid Shielded Multi Core ATC Cables

SGI manufactures premium quality multicore screened cables designed for superior electromagnetic interference (EMI) protection and signal integrity. These cables feature RoHS-compliant FR-PVC insulated cores with tinned copper conductors, offering exceptional performance in data control and communication applications. The construction includes individual cores twisted together, tapped with polyester, and protected by a braided tinned copper shield, all enclosed in a durable FR-PVC outer sheath.

Available in two distinct product lines – the standard Multicore Screened Cable with aluminum polyester core wrapping and tinned copper braiding, and the advanced Multi Core Braided ATC (Annealed Tinned Copper) Cables with polyester tapping and comprehensive braided shielding. These cables are engineered to provide maximum protection against electrical noise and interference while maintaining flexibility and ease of installation. With configurations ranging from 2 cores to 20 cores and conductor sizes from 7/36 to 14/38 SWG, SGI offers comprehensive solutions for diverse industrial and commercial applications.

  • Superior EMI Shielding: Braided tinned copper screen provides excellent protection against electromagnetic interference and radio frequency interference
  • RoHS Compliant: Manufactured in accordance with RoHS standards ensuring environmental safety and regulatory compliance
  • Flame Retardant Construction: FR-PVC insulation and sheathing materials offer fire resistance for enhanced safety
  • Tinned Copper Conductors: High-quality annealed tinned copper strands ensure excellent conductivity, corrosion resistance, and solderability
  • Multiple Core Configurations: Available from 2 cores to 20 cores to suit various application requirements
  • Flexible Strand Options: Conductor configurations including 7/36, 7/0.20, 14/36, 14/0.076, 7/0.060, and 14/38 SWG
  • Size Range: Conductor sizes from 0.30mm to 2.50mm OD and 0.20mm to 0.25mm for ATC cables
  • Twisted Core Design: Cores twisted together to minimize crosstalk and improve signal quality
  • Color Coded Options: Standard outer sheath in Black for screened cables and Grey for ATC braided cables for easy identification
  • Robust Construction: Polyester tapping and aluminum polyester wrapping provide additional mechanical protection
  • Standard Packaging: Conveniently packed in 100-meter coils for screened cables and 90-meter coils for ATC braided cables
  • Wide Product Range: Over 40 product codes available covering various core and size combinations
  • Data Communication Systems: Ideal for RS-232, RS-422, RS-485, and other serial communication protocols
  • Control & Instrumentation: Perfect for connecting sensors, transducers, and control devices in industrial automation
  • Audio Equipment: Excellent for professional audio systems, microphone cables, and studio equipment connections
  • Computer Networking: Suitable for local area networks and computer peripheral connections requiring EMI protection
  • Industrial Automation: Used extensively in PLC (Programmable Logic Controller) systems and factory automation equipment
  • CCTV & Security Systems: Ideal for connecting surveillance cameras and security equipment where signal integrity is critical
  • Measurement & Testing Equipment: Perfect for laboratory instruments and precision measurement devices
  • Telecommunication Systems: Used in telephone exchanges, intercom systems, and communication infrastructure
  • Process Control Systems: Excellent for industrial process monitoring and control applications
  • Medical Equipment: Suitable for medical diagnostic and monitoring equipment requiring shielded connections
  • Broadcasting Equipment: Used in radio and television broadcasting systems for signal transmission
  • Marine & Offshore Applications: Suitable for shipboard electronics and offshore platform instrumentation
  • Building Management Systems: Ideal for HVAC controls, lighting systems, and integrated building automation
  • Transportation Systems: Used in railway signaling, traffic control systems, and vehicle electronics

Multicore Screened Cable (RoHS FR-PVC Insulated)

  • Conductor Material: Tinned Copper
  • Conductor Type: Annealed, stranded
  • Insulation Material: FR-PVC (Flame Retardant Polyvinyl Chloride)
  • Core Wrapping: Aluminum Polyester
  • Shield Type: Tinned Copper Braided Screen
  • Outer Sheath: FR-PVC
  • Standard Outer Sheath Color: Black
  • Conductor Sizes: 0.50mm, 0.75mm, 1.00mm, 1.50mm, 2.50mm OD
  • Core Configurations: 2, 3, 4, 6, 8, 10, 12 cores
  • Strand Configurations: 7/36 SWG for smaller sizes, 14/36 SWG for larger sizes
  • Product Code Range: SA-2401 to SA-2417 (varying by size and core count)
  • Standard Packing: 100 meters per coil
  • Temperature Rating: Suitable for standard industrial temperature ranges
  • Voltage Rating: Suitable for low voltage data and control applications
  • Compliance: RoHS compliant, meets international safety standards

Screened/Braid Shielded Multi Core ATC Cables

MULTICORE ATC WIRE SPECIFICATIONS
No of Strands Size in SWG 7/36 14/36 7/38 14/38
No of Strands Size in mm 7/.19 14/.19 7/.15 14/.15
Size in Sq mm 0.20 0.40 0.125 0.40
Images No. of Cores 7/36 14/36 7/38 14/38
Product Code Approx. overall Dia.(m.m.) Product Code Approx. overall Dia.(m.m.) Product Code Approx. overall Dia.(m.m.) Product Code Approx. overall Dia.(m.m.)

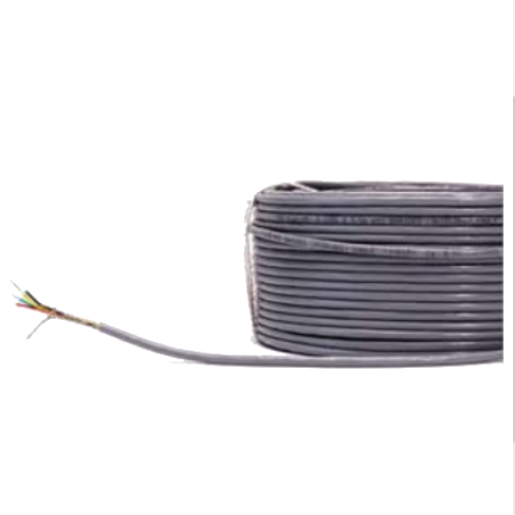

Multicore ATC Wire 2 SA-2201 4.4 SA-2221 5.0 SA-2241 3.3 SA-2261 3.8
3 SA-2202 4.6 SA-2222 5.3 SA-2242 4.1 SA-2262 4.5
4 SA-2203 5.0 SA-2223 5.7 SA-2243 4.5 SA-2263 5.0
6 SA-2204 5.7 SA-2224 6.6 SA-2244 5.3 SA-2264 6.0
8 SA-2205 6.5 SA-2225 7.5 SA-2245 5.8 SA-2265 6.4
10 SA-2206 7.2 SA-2226 8.4 SA-2246 6.2 SA-2266 6.8
12 SA-2207 7.4 SA-2227 8.8 SA-2247 6.6 SA-2267 7.2
16 SA-2208 8.3 SA-2228 9.7 SA-2248 7.0 SA-2268 7.8
20 SA-2209 9.5 SA-2229 11.3 SA-2249 8.2 SA-2269 9.2
MULTICORE ATC WIRE SPECIFICATIONS
No of Strands Size in SWG 7/36 14/36 7/38 14/38
No of Strands Size in mm 7/.19 14/.19 7/.15 14/.15
Size in Sq mm 0.20 0.40 0.125 0.40
Images No. of Cores 7/36 14/36 7/38 14/38
Product Code Approx. overall Dia.(m.m.) Product Code Approx. overall Dia.(m.m.) Product Code Approx. overall Dia.(m.m.) Product Code Approx. overall Dia.(m.m.)
Multicore ATC Wire 2 SA-2201 4.4 SA-2221 5.0 SA-2241 3.3 SA-2261 3.8
3 SA-2202 4.6 SA-2222 5.3 SA-2242 4.1 SA-2262 4.5
4 SA-2203 5.0 SA-2223 5.7 SA-2243 4.5 SA-2263 5.0
6 SA-2204 5.7 SA-2224 6.6 SA-2244 5.3 SA-2264 6.0
8 SA-2205 6.5 SA-2225 7.5 SA-2245 5.8 SA-2265 6.4
10 SA-2206 7.2 SA-2226 8.4 SA-2246 6.2 SA-2266 6.8
12 SA-2207 7.4 SA-2227 8.8 SA-2247 6.6 SA-2267 7.2
16 SA-2208 8.3 SA-2228 9.7 SA-2248 7.0 SA-2268 7.8
20 SA-2209 9.5 SA-2229 11.3 SA-2249 8.2 SA-2269 9.2
