SGI manufactures Bare solid Copper LAN cables with better twisting ratio for transmitting data over local area Networks (LANs) at very high speeds (up-to 1000 Mbps/ 1 Gigabit per second).

As the usage of internet for streaming videos etc over LAN has increased tremendously, users demand faster data transmission and reduced waiting time. Our cables are highly cost-effective and provide better reliability for current applications and higher data rates for future applications.

Superior Copper Construction

  • Bare solid copper conductors for optimal conductivity
  • High-purity copper ensures minimal signal loss
  • 4 pair (8 conductor) configuration
  • Solid conductors provide stable, reliable connections
  • Better electrical performance than CCA (Copper Clad Aluminum)

Optimized Twisting Ratio

  • Precisely engineered twist rates for each pair
  • Better twisting ratio reduces crosstalk
  • Minimizes electromagnetic interference (EMI)
  • Enhanced signal integrity over long distances
  • Improved performance consistency

High-Speed Performance

  • Supports data rates up to 1000 Mbps (1 Gigabit per second)
  • 300 MHz bandwidth capability
  • Category 6 performance standards
  • Suitable for Gigabit Ethernet applications
  • Future-ready for emerging high-speed applications

Unshielded Twisted Pair (UTP) Design

  • Cost-effective solution for most environments
  • Easier installation compared to shielded cables
  • Flexible and easy to route
  • Compatible with standard RJ45 connectors
  • Suitable for structured cabling systems

Cable Category

  • Standard: CAT-6 (Category 6)
  • Type: Unshielded Twisted Pair (UTP)
  • Bandwidth: 300 MHz
  • Data Rate: Up to 1000 Mbps (1 Gigabit/second)

Conductor Specifications

  • Conductor Material: Bare Solid Copper (100% copper)
  • Number of Pairs: 4 pairs (8 conductors total)
  • Conductor Type: Solid (non-stranded)
  • Conductor Size: Typically 23 AWG or 24 AWG
  • Optimized twisting ratio for superior performance

Electrical Performance

  • Maximum Data Speed: 1000 Mbps (1 Gbps)
  • Frequency Range: Up to 300 MHz
  • Impedance: 100 Ohms ±15 Ohms
  • Propagation Delay: ≤ 545 ns/100m
  • Delay Skew: ≤ 50 ns/100m

Transmission Performance

  • Supports: 10BASE-T (Ethernet)
  • Supports: 100BASE-TX (Fast Ethernet)
  • Supports: 1000BASE-T (Gigabit Ethernet)
  • Maximum Segment Length: 100 meters (328 feet)
  • Full-duplex transmission capability
  • Pure Copper Construction: 100% bare solid copper ensures superior conductivity and performance
  • Optimized Twisting: Better twist ratios minimize crosstalk and interference
  • Gigabit Speed: Supports up to 1000 Mbps for demanding applications
  • 300 MHz Bandwidth: High-frequency capability for advanced protocols
  • Cost-Effective: Excellent performance at competitive pricing
  • Streaming Ready: Perfect for video streaming and multimedia applications
  • Future-Proof: Ready for higher data rate requirements
  • Reliable Performance: Consistent quality for mission-critical networks
  • Easy Installation: UTP design simplifies deployment
  • Industry Compliant: Meets CAT-6 standards and specifications

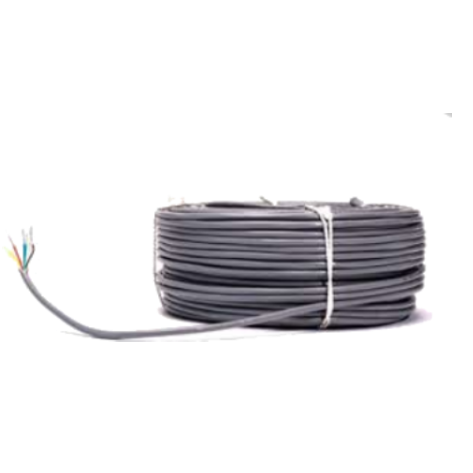

Lan Cable

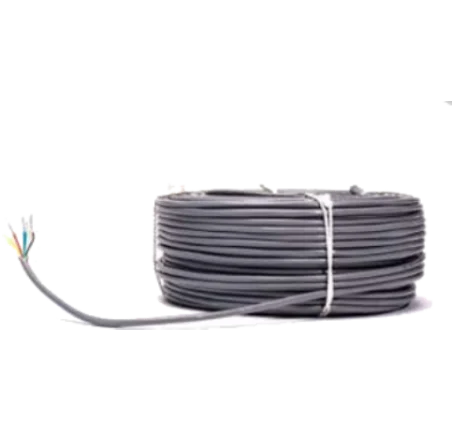

CAT 6 CABLE SPECIFICATIONS
Images ITEM CAT 6
CAT 6 Cable Conductor Solid Bare Electrolytic Grade Copper 24 AWG
Nominal Conductor Diameter 0.52 mm
Insulation High Density Polyethylene
Seperator Central PE pair separator for reduced cross talk
Outer Jacket Sheathing FR PVC
Appx. Cable OD 6.0 mm ±0.30mm
Core Colour Pair – 1 = White – Blue Pair – 2 = White – Orange Pair – 3 = White – Green Pair – 4 = White – Brown
Electrical Performance CAT 6 at 300 MHz
Standards ANSI/TIA-568 C.2
Characteristic Impedance 100 +/- 15 Ohm.
Velocity of Propagation 62.1% Min. @250 MHz
Delay Slew 45 ns/100 MHz @ 20C min.
Propagation delay 536 ns/100 MHz Max. @ 20C @ 250 MHz
DC Resistance <9.38 Ohm./100 MHz. Max. @ 20C
Mutual Capacitance 5.6 nF/100 Mtrs. Max.
Standard Color Grey
CAT 6 Cable Standard Packing 305 mtr / Roll
