FLRY C

Shree Gopal Industries proudly presents itself as a trustworthy manufacturer of premium FLRY-C cables, specifically designed for demanding automotive applications. Our FLRY-C wires are PVC insulated copper conductor (unsheathed) cables rated for 1100 voltage grade, meeting the stringent requirements of modern automotive electrical systems. These cables are extensively used in both 2-wheeler and 4-wheeler vehicles for various critical applications and in instrument panel circuits where reliability and performance are paramount.

Understanding the diverse needs of the automotive industry, we offer FLRY-C wires in an extensive range of sizes, lengths, and insulation thicknesses at highly economical prices, making quality accessible to all our customers. The FLRY designation represents Low Tension Wire (FL) with Reduced thickness of insulation (R) and Polyvinyl Chloride Insulation (Y), optimized for space-constrained automotive environments. Manufactured using soft annealed copper conductors conforming to ASTM B3 standards and high-quality PVC insulation based on ISO-6722 Class C specifications, our FLRY-C cables deliver exceptional electrical performance, mechanical durability, and long-term reliability in the challenging automotive environment.

  • Automotive Grade Quality: Specifically designed and manufactured for automotive applications meeting international automotive standards
  • 1100 Voltage Grade: Rated for reliable performance at 1100V, suitable for various low tension automotive circuits
  • Soft Annealed Copper Conductor: Manufactured as per ASTM B3 standards ensuring excellent conductivity and flexibility
  • ISO-6722 Class C Compliant: PVC insulation meets ISO-6722 Class C specifications for automotive cables
  • Reduced Insulation Thickness: R-type design optimizes space utilization without compromising electrical safety
  • Wide Size Range: Available from 24 AWG to 50.00 mm² covering all automotive wiring requirements
  • Comprehensive Construction Options: Multiple strand configurations from 7/0.21 to 1444/0.21 for different flexibility needs
  • Low Conductor Resistance: Ranges from 0.38 Ω/km to 74 Ω/km ensuring minimal power loss
  • Temperature Resistant: Operating temperature range from -40°C to +125°C suitable for extreme automotive conditions
  • Flame Retardant: <2 seconds flame resistance for enhanced vehicle safety
  • High Electric Strength: 1KV for 30 minutes under salt solution demonstrating superior insulation quality
  • Economical Pricing: Competitive pricing structure making quality automotive cables affordable
  • Flexible Packaging: Standard packing of 100 meters with longer lengths available in spool for bulk requirements
  • Color Coding Options: Available in multiple colors for easy circuit identification and installation
  • 2-Wheeler Vehicles: Complete electrical wiring harnesses for motorcycles, scooters, and electric two-wheelers
  • 4-Wheeler Vehicles: Comprehensive wiring solutions for cars, SUVs, and commercial vehicles
  • Instrument Panel Circuits: Dashboard wiring, gauge connections, and instrument cluster assemblies
  • Engine Wiring Harnesses: Connections for sensors, actuators, and engine control modules
  • Lighting Systems: Headlights, tail lights, turn signals, and interior lighting circuits
  • Power Distribution: Battery connections, fuse box wiring, and power distribution systems
  • Audio & Entertainment: Car stereo systems, speakers, and entertainment unit connections
  • Climate Control Systems: Air conditioning, heating, and ventilation system wiring
  • Security & Safety Systems: Airbag circuits, anti-theft systems, and central locking mechanisms
  • Sensor Connections: Various automotive sensors including temperature, pressure, and position sensors
  • Electric Vehicle Applications: Battery management systems and electric motor connections
  • Agricultural Vehicles: Tractors and farm equipment electrical systems
  • Construction Equipment: Wiring for heavy machinery and construction vehicles
  • Marine Vehicles: Boat and watercraft electrical installations (with appropriate additional protection)
  • Automotive Aftermarket: Replacement wiring, custom installations, and vehicle modifications
  • Electric Rickshaws: Complete wiring solutions for electric three-wheelers
  • Golf Carts & Utility Vehicles: Low-speed vehicle electrical systems

Cable Design Parameters

  • Cable Type: FLRY-C (Low Tension, Reduced Insulation, PVC)
  • Voltage Grade: 1100V
  • Conductor Type: Unsheathed (single insulated wire)
  • Conductor Material: Soft Annealed Copper (as per ASTM B3)
  • Insulation Material: PVC with properties based on ISO-6722 Class C

FLRY C

CABLE DESIGN PARAMETERS
Images Size in mm² Construction Conductor Resistance at Outer dia of cable mm Insulation thickness

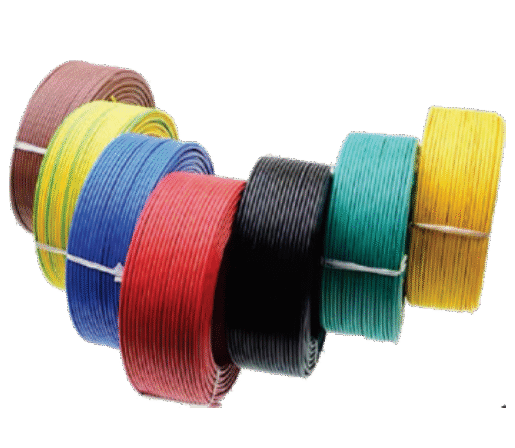

Cable Design 24 AWG 7/0.21 74 1.2 0.20
22 AWG 12/0.21 52 1.3 0.20
0.50 16/0.21 37.1 1.6 0.22
0.75 24/0.21 24.7 1.9 0.24
1.00 32/0.21 18.5 2.1 0.24
1.50 48/0.21 12.7 2.4 0.24
2.50 80/0.21 7.6 3.0 0.28
4.00 116/0.21 4.7 3.7 0.32
6.00 316/0.153 3.1 4.3 0.32
10.00 535/0.153 1.82 6.2 0.60
