FLRY B

Shree Gopal Industries proudly offers FLRY-B automotive cables, specially engineered to meet the performance and reliability requirements of modern automotive electrical systems. Our FLRY-B cables are PVC insulated, soft annealed bare copper conductor wires, designed for low-tension automotive applications.

FLRY-B wires are widely used in 2-wheelers and 4-wheelers, especially in instrument panel circuits and internal automotive wiring, where consistent electrical performance and durability are essential. These cables are manufactured to operate reliably across a wide temperature range from –40°C to +105°C, ensuring stable performance even under harsh automotive and industrial conditions.

The FLRY-B designation stands for Low Tension Wire (FL) with Reduced thickness of insulation (R) and Polyvinyl Chloride insulation (Y). Manufactured using ASTM B3 compliant soft annealed copper conductors and PVC insulation as per ISO-6722 Class B, FLRY-B cables provide excellent flexibility, electrical conductivity, and long service life.

  • PVC insulated soft annealed bare copper conductor
  • Reduced insulation thickness for space-saving installations
  • Excellent flexibility and easy routing in automotive harnesses
  • Stable electrical performance under vibration and heat
  • Wide operating temperature range from –40°C to +105°C
  • Available in multiple insulation colors for easy identification
  • Conforms to DIN 72551 & ISO 6722 Class B (T2) standards
  • Automotive wiring for 2-wheelers & 4-wheelers
  • Instrument panel and dashboard circuits
  • Internal vehicle wiring harnesses
  • Low tension automotive electrical systems
  • Automotive control panels and signal circuits
  • Suitable for automotive and light industrial applications
  • Voltage Rating: 1100 Volts
  • Temperature Rating: –40°C to +105°C
  • Conductor: Soft annealed copper as per ASTM B3
  • Insulation: PVC as per ISO-6722 Class B
  • Standards: DIN 72551, ISO 6722 Class B (T2)

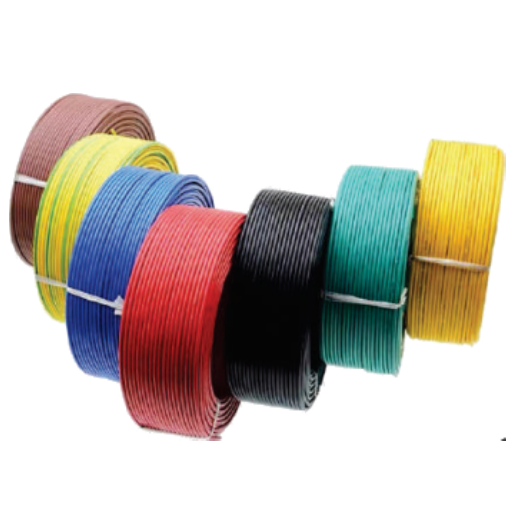

  • Insulation Colors:  Red, Black, Blue, Orange, Yellow, White, Green, Grey, Brown, Violet, Pink
  • Size Range: 24 AWG to 50 sqmm
  • Standard Packing: 100 mtr & 300 mtr coils

FLRY B

Cable Design Parameters
CABLE DESIGN PARAMETERS
Images Size In Mm² Construction Conductor Resistance
At		 Outer Dia Of Cable
Mm		 Insulation Thickness
Cable Image 24 AWG 7/0.21 74 1.2 0.20
22 AWG 12/0.21 52 1.3 0.20
0.50 16/0.21 37.1 1.6 0.22
0.75 24/0.21 24.7 1.9 0.24
1.00 32/0.21 18.5 2.1 0.24
1.50 48/0.21 12.7 2.4 0.24
2.50 80/0.21 7.6 3.0 0.28
4.00 116/0.21 4.7 3.7 0.32
6.00 316/0.153 3.1 4.3 0.32
10.00 535/0.153 1.82 6.2 0.60
16.00 870/0.153 1.16 7.2 0.80
25.00 722/0.21 0.74 8.7 0.90
35.00 1011/0.21 0.53 10.4 0.90
50.00 1444/0.21 0.38 12.4 1.00
